HT36000 Automatic Hydraulic Press

Generally used to press Tile thickness: 3-30mm Tile size: 8-400x1800mm、 4-800x1800mm、 4-900x1600mm、 3-1200x1600mm、2-1600x1800mm、1600x3600mm etc. Floor tile, L-size thin tile (slab), glaze-polished tile, full body marble tile and sintered stone.

The adoption of die forming, square cylinder and belt charging is characterized by strong technological adaptability, good tile quality, low powder wastage and low comprehensive cost.

Back to list

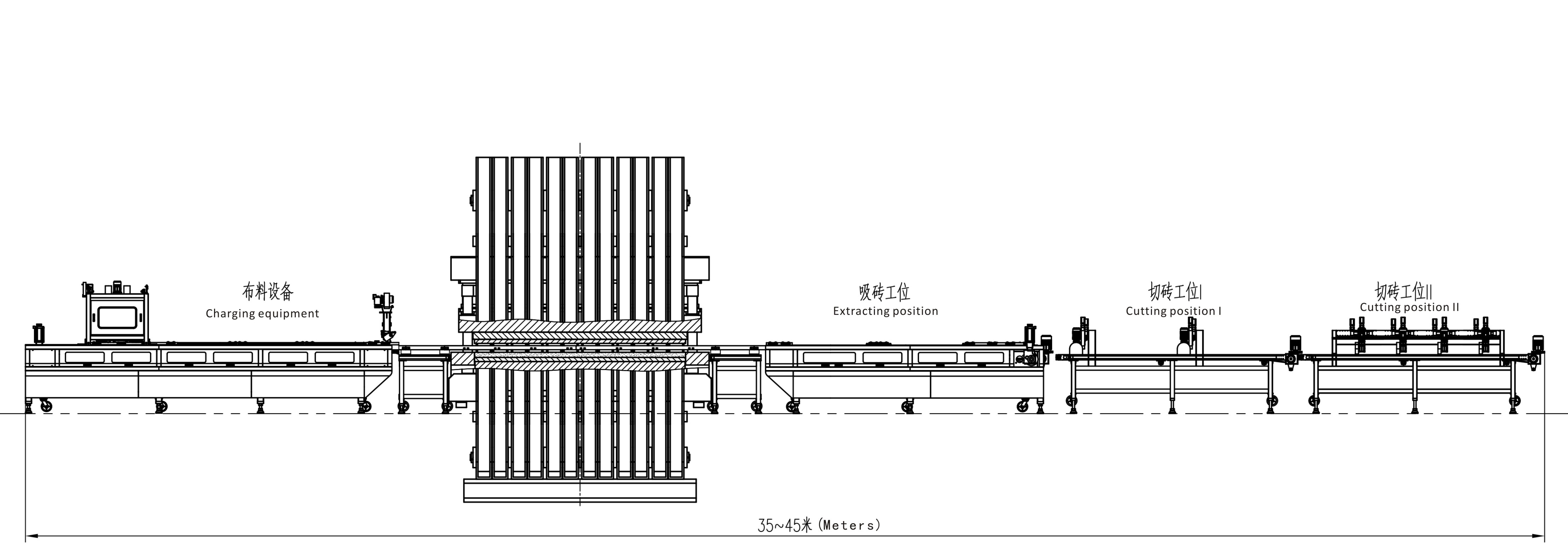

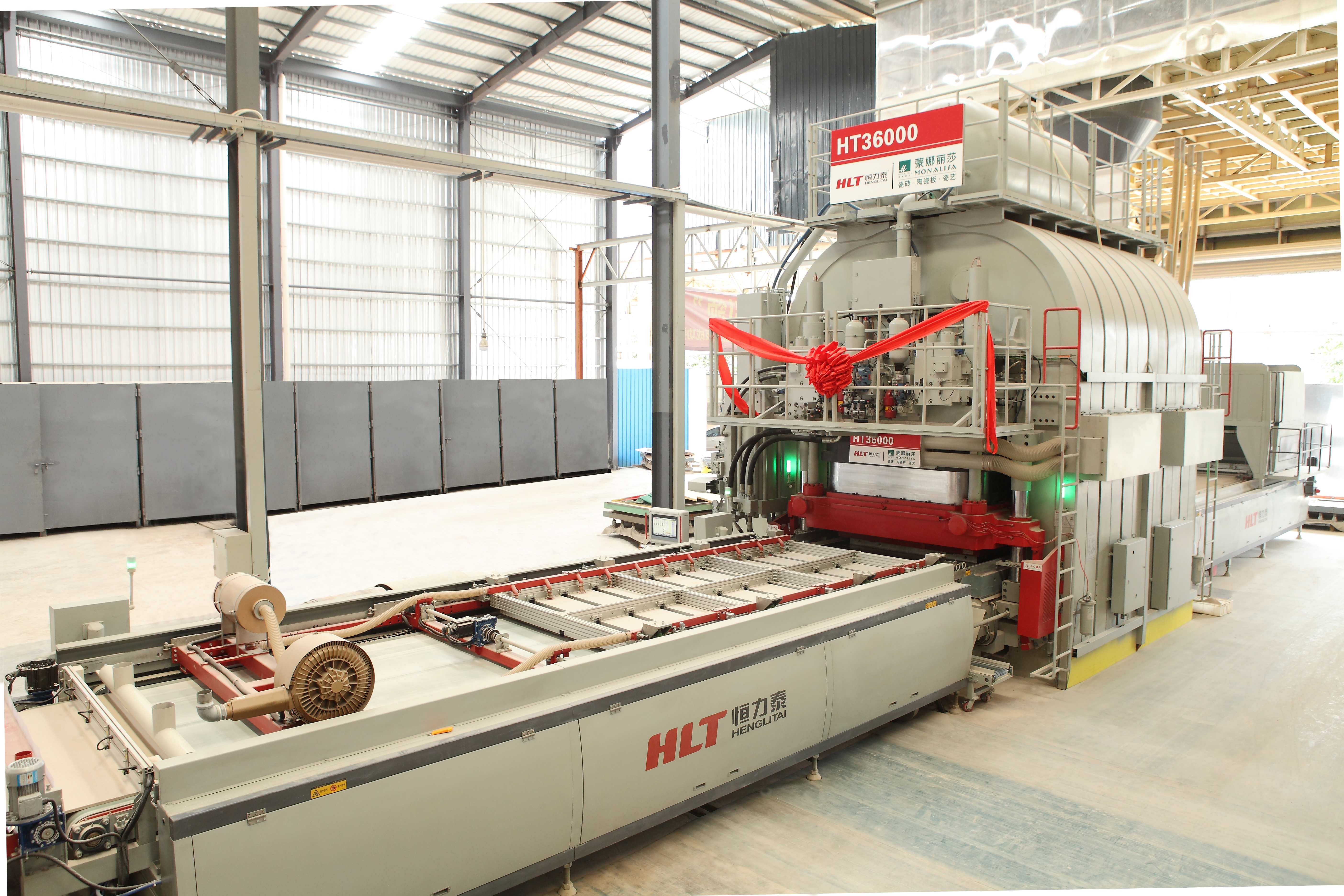

Technical Characteristics Technical Parameters Lay-out Drawing Scene Image

1.The composite frame pre-tightened with steel-wire of high fatigue property and bearing stability.
2.The new belt charging technology can make charging more even and realize the whole body pattern texture.
3.Mature die formation pressing process is adopted to make tile more compactand of higher quality. There is no need to cut edge before firing to reduce powder waste.
4.The deep back pattern can be set on the back of the tile by die formation, which is conducive to paving. And the mold has long service life and low cost.
5.The square cylinder have been patented and it has features of more even pressing load distribution, small brick deformation and fast pressing speed.
6.The tile width can be adjusted by replacing the mold and the tile can be cut into various specifications as required to realize flexible production.
7.It is equipped with quick die change system with short changing time and low labor intensity.

8.The equipments of the whole production system are all used by intelligent centralized control and management with the function of data network, which can be connected with MES, ERP and other factory production management systems.

HT36000參數的對比表

壓機參數	UNIT	HT27000	HT32000	HT36000	HT40000	HT48000	HT53000
最大壓制力	kN	270000	320000	360000	400000	480000	530000
系統壓力	Mpa	22	22	22	22	22	22
動梁最大行程	mm	295	295	295	295	295	295
最大填料深度	mm	60	60	60	60	60	60
周期加壓次數	times	2~5	2~5	2~5	2~5	2~5	2~5
最高壓制頻率	min﹣1	3.5	3.5	3.0	2.5	1.5	1.5
主機重量	t	470	550	700	740	840	980
最大成型壓力	bar	480	480	480	480	480	480
磚坯最大規格	mm	1200x3600	1600x3200	1600x3600	1800x3600	1600x4800	1800x4800
磚坯寬度	mm	900~1200	1200~1600	1200~1600	1500~1800	1200~1600	1500~1800
磚坯厚度	mm	5~25	5~25	5~25	5~25	5~25	5~25
